FEATURES:
- Compact size,light weight,good performance,easy use,charming appearance;
- It adopts the modular connection,it may be used individually or by combination with easy installation;
- Manual drain,semi-auto drain(water discharged automatically while air turning off)and fully auto drain for your selection;
- The precision air regulator has fine flow-pressure characteristics.The hand wheel with self-locking function is fit for any vibration environment ;
- The lubricator utilizes the novel drops control mechanism to fulfill the oil adding with air on. The inside flow sensor ensures the low atomizing flow,thin oil mist particles and long transmission distance.
|
|
ITEM |
|
 |
|
|
Model |
AC1000 |
AC2000 |
AC3000 |
AC4000 |
|
Operating Pressure |
1.0Mpa(10.2Kgf/cm2) |
|
Max Pressure |
1.5Mpa(15.3Kgf/cm2) |
|
Operating Temperature |
5-60¡æ |
|
Filtration |
5 or 40¦Ìm |
|
Set Pressure |
0.05-0.85MPa(0.5-8.7Kgf/cm2) |
|
Mini.Flow for Oil Drop |
0.015m3/min |
0.03m3/min |
0.065m3/min |
|
Max Oil Level |
20cm3 |
85cm3 |
170cm3 |
|
Water Bowl Capacity |
12cm3 |
45cm3 |
80cm3 |
|
Oil Recommended |
Turbine oil No.1(ISO VG32) |
|
Port Size |
G1/8¡¢1/4 |
G1/4¡¢3/8¡¢1/2 |
G3/8¡¢1/2¡¢(3/4 with connecting nipple) |
|
Standard Accessories |
Pressure Gauge,Bracket, Bowl Guard |
|
Caution |
Be sure to turn off the air before disassembling the plasic bowl and bowl guard. |
 |

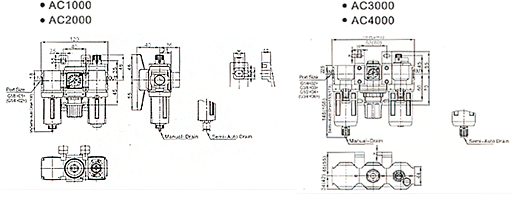

| Note:()indicates the dimension of AC2000 |
Note:()indicates the dimension of AC4000 | |
| Flow Diagrams |
 |
 |
 |
 |
 |
 |
| Product Code System |
¡¡
|
|
|
(a) |
- |
(b) |
(c) |
(d) |
(e) |
(f) |
|
AC3000 |
¡¡ |
03 |
E |
S |
R |
G |
|
©Ó
©¦ |
¡¡ |
©Ó
©¦ |
©Ó
©¦ |
©Ó
©¦ |
©Ó
©¦ |
©Ó
©¦ |
|
Model |
¡¡ |
Port Size:G3/8 |
Drain:Semi-Auto |
Filtration:
40¦Ìm |
Pressure Gauge:Round |
Color:Gray |
|
| (a)Model |
(b)Port Size |
(c)Drain |
(d)Filtration |
(e)Pressure Gauge |
(f)Color |
|
AC1000 |
F.R.L |
01 |
G1/8 |
Blank |
Manual |
Blank |
5¦Ìm |
¡¡ |
GS-27 Square |
Blank |
Black |
|
AC2000 |
F.R.L |
02 |
G1/4 |
Blank |
|
AC3000 |
F.R.L |
02 |
G1/4 |
T |
Without Gauge |
|
03 |
G3/8 |
|
04 |
G1/2 |
E |
Semi-Auto |
S |
40¦Ìm |
|
AC4000 |
F.R.L |
03 |
G3/8 |
R |
GR-40
Round |
G |
Gray |
|
04 |
G1/2 |
|
05 |
G3/4 |
A |
Auto |
|
|
|
Model |
Port Size G |
Modular |
Operating Pressure MPa |
Set Pressure
(MPa) |
Max Air Flow (m3/min/ANR) |
|
Filter |
Regulator |
Lubricator |
|
AC1000-01 |
1/8 |
AF1000-01 |
AR1000-01 |
AL1000-01 |
1.0 |
0.05
-
0.85 |
0.35 |
|
AC2000-02 |
1/4 |
AF2000-02 |
AR2000-02 |
AL2000-02 |
0.6 |
|
AC3000-02 |
1/4 |
AF3000-03 |
AR3000-02 |
AL3000-02 |
1.2 |
|
AC3000-03 |
3/8 |
AF3000-04 |
AR3000-03 |
AL3000-03 |
1.7 |
|
AC3000-04 |
1/2 |
AF4000-03 |
AR3000-04 |
AL3000-04 |
1.9 |
|
AC4000-03 |
3/8 |
AF4000-03 |
AR4000-03 |
AL4000-03 |
2.0 |
|
AC4000-04 |
1/2 |
AF4000-04 |
AR4000-04 |
AL4000-04 |
2.5 |
|
AC4000-06 |
3/4 |
AF4000-06 |
AR4000-06 |
AL4000-06 |
2.8 |
-
Temperature Range:5-60¡æ
-
Oil Recommended:Tubrbine Oil No.1(ISO VG 32)
-
At 0.5MPa set pressure,0.7 Mpa supply pressure,0.1 Mpa pressure drop
| |
|
|
