| Specifications |
|
Item |
|
|
|
|
Model |
AF1000 |
AF2000 |
AF3000 |
AF4000 |
|
Operating Pressure |
1.0Mpa(10.2Kgf/cm2) |
|
Max Pressure |
1.5Mpa(15.3Kgf/cm2) |
|
Operating Temperature |
5-60℃ |
|
Filtration |
5or40μm |
| Water Bowl Capacity |
12cm3 |
45cm3 |
80cm3 |
|
Port Size |
G1/8、G1/4 |
G1/4、G3/8、G1/2 |
G3/8、1/2、(3/4、
with connecting nipple) |
|
Standard Accessories |
Bowl Guard |
|
Caution |
Be sure to turn off the air before disassembling the plastic bowl and bowl guard. | |
| |
| Product Code System |
| |
AF4000 | AF3000 | AF1000/2000 |
- Filter (AF1000-01-AF4000-06)Serie
|
|
Model |
Port Size
G |
Operating Pressure (Mpa) |
Max Air Flow
L/min/(ANR) |
Filtration(μm) |
|
AF1000-01 |
1/8 |
1.0 |
500 |
5 or 40 |
|
AF2000-02 |
1/4 |
650 |
|
AF3000-02 |
1/4 |
1100 |
|
AF3000-03 |
3/8 |
1500 |
|
AF3000-04 |
1/2 |
1800 |
|
AF4000-03 |
3/8 |
2000 |
|
AF4000-04 |
1/2 |
2700 |
|
AF4000-06 |
3/4 |
3000 |
|
|
|
|
|
|
|
(a) |
- |
(b) |
(c) |
(d) |
(f) |
(g) |
|
AF3000 |
|
03 |
E |
S |
B |
G |
|
┯
| |
|
┯
| |
┯
| |
┯
| |
┯
| |
┯
| |
|
Model |
|
Port Size:G3/8 |
Drain:semi-Auto |
Filtration:40μm |
Mounting Type:C-Bracket |
Color:Gray |
|
(a)Model |
(b)Port Size |
(c)Drain |
(d)Filtration |
(e)Mounting Type |
(f)Color |
|
AF1000 |
Filter |
01 |
G1/8 |
Blank |
Maunual |
Blank |
5μm |
Blank |
Without Bracket |
Blank |
Black |
|
AF2000 |
Filter |
02 |
G1/4 |
|
AF3000 |
Filter |
02 |
G3/8 |
|
03 |
G1/2 |
E |
Semi-Auto |
|
04 |
G1/2 |
S |
40μm |
B |
C-Bracket |
G |
Gray |
|
AF4000 |
Filter |
03 |
G3/8 |
A |
Auto |
|
04 |
G1/2 |
|
06 |
G3/4 | |
| |
| Flow Diagrams |
|
|
| |

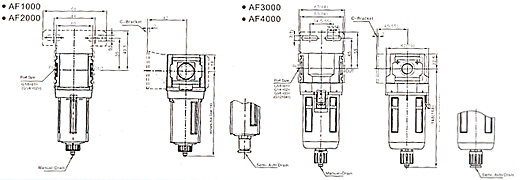

| Dimensions |
|
|
| Note:()indicates the dimension of AF2000 |
Note:()indicates the dimension of AF4000 | | |
| | |
|
|
