Specifications
Item
Model
AL1000
AL2000
AL3000
AL4000
Operating Pressure
1.0Mpa(10.2Kgf/cm2)
Max Pressure
1.5Mpa(15.3Kgf/cm2)
Operating Temperature
5-60℃
Mini Flow for Oil Drop
0.015m3/min
0.03m3/min
0.065m3/min
Max Oil Level
20cm3
85cm3
170cm3
Oil Recommended
Turbine Oil No.1(ISO VG32)
Port Size
G1/8、G1/4
G1/4、G1/8、G1/2
G3/8、G1/2、(G3/4 with connecting nipple)
Standard Accessories
Bowl Guard
Caution

Be sure to turn off the air before disassembling the plastic bowl and bowl guard.

　
Product Code System
  • (AL 1000-01-AL4000-06) Series
Model
Port Size
G
Operating Presssure
(Mpa)

Max Air Flow
m3/min(ANR)

Max Oil Level
cm3
AL1000-01
1/8
1.0
500
20
AL2000-02
1/4
600
AL3000-02
1/4
1200
80
AL3000-03
3/8
1800
AL3000-04
1/2
2000
AL4000-03
3/8
2300
170
AL4000-04
1/2
2600
AL4000-06
3/4
2900
  • Operating Temperature Range:5-60℃
    *At 0.5MPa set pressure,0.7Mpa supply pressure,0.1Mpa Pressure drop
　 　 　
(a)
-
(b)
(c)
(d)
AL3000
　
03
B
G
┯
│
　
┯
│
┯
│
┯
│
Model
　
Port Size:G3/8
Mounting Type:C-Bracket
Color:Gray
(a)Model
(b)Port Size
(c)Mounting Type
 (d)Color
AL1000
Lubricator
01
G1/8
Blank
Without Bracket
 Blank
Black
AL2000
Lubricator
02
G1/4
AL3000
Lubricator
02
G1/4
03
G3/8
04
G1/2
B
C-Bracket
G
Gray
AL4000
Lubricator
03
G3/8
04
G1/2
06
G3/4
　

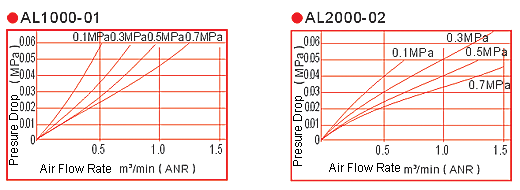

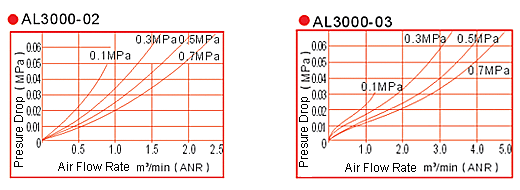

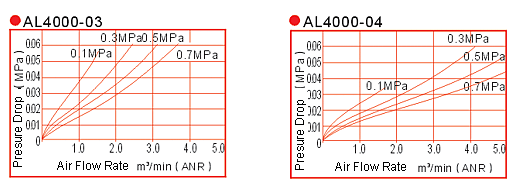

Flow Diagrams
　 　
　

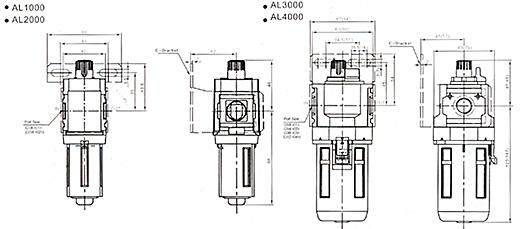

Dimensions
Note:()indicates the dimension of AL2000 Note:()indicates the dimension of AL4000
