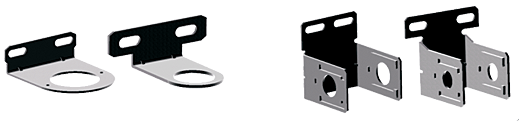

L-BRACKET
C-BRACKET



L-BRACKET
Model
P/N
 Design For
A
B
C
D
E
F
G
H
I
J
B
 B100 AR1000 Series
AR2000 Series
44
68
10
6.5
16
24.5
45
40
59
Φ26.5
AW1000 Series
AW2000 Series
B300 AR3000 Series
34.5
67
16.5
7
18
26
58
45
76
Φ40
AW3000 Series
B400 AR4000 Series
55
84
14
7
18
26
58
45
94
Φ47
AW4000 Series

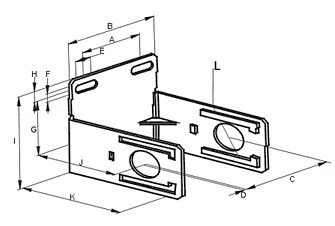

C-BRACKET
Model
P/N
Design For
A
B
C
D
E
F
G
H
I
J
K
L
B
B100
1000 Series
44
68
40
T2.0
10
6.5
35
8.5
61.5
40
60
Φ14
2000 Series
B300
3000 Series
34.5
67
63
T2.3
14.0
7
45
9
76
45
69
Φ21.7
B400
4000 Series
55
84
80
T2.3
16
9
50
11
93.5
65
102
Φ35
