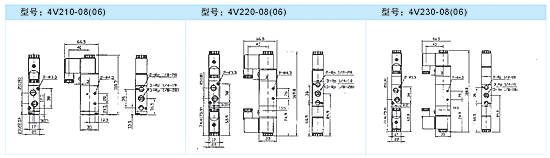

Quick Connecting Tube Fitting & Accessories     F.R.L.Equipment     3/2 Way Solenoid Valve / Air     5/2 & 5/3 Way Solenoid Valve     5/2 & 5/3 Way Air Control Valve     Manifold     Solenoid Coil     Coil Socket     2/2 Way Solenoid Valve     Cylinder   4V2 Series 5/2 & 5/3 WAY SOLENOID VALVE    SIGN Specification for Type 4V 2 10 08 AC110V ┯ │ ┯ │ ┯ │ ┯ │ ┯ │ Specification code 4V:5/2 & 5/3 WAY SOLENOID VALVE 2:200 series Coil and position 10:single head double position 20:double head double position 30C:double head three position close type 30E:double head three position released type 30P:double head three position pressure type Adapter diameter 06:1/8" 08:1/4" Standard voltage: DC12V DC24V AC24V 50/60Hz AC110 50/60Hz AC220 50/60Hz AC380 50/60Hz Specification Item 4V210 -06 4V220 -06 4V230C -06 4V230E -06 4V230P -06 4V210 -08 4V220 -08 4V230C -08 4V230C -08 4V230P -08 Medium Air( diameter 40mm filter net) Action mean Inside guide style Position five port two position three port five position five port two position three port five position Effective section area 14mm2(CV=0.78) 12mm2(CV=0.78) 16mm2(CV=0.78) 14mm2(CV=0.78) Adapter diameter Inlet=outlet=release=1/8" Inlet=outlet=1/4" release=1/8" Pressure applied 1.5-9.0kgf/cm2 Max. pressure withstand 13.5kgf/cm2 Temp 5~60℃ Voltage range ±10% Power consumption AC:4.0VA DC:3.0W Isolation property F Degree of protection IP65(DIN4005) Wiring mean Terminal Max. operation frequency 4 times per second Min. excitation time 0.05/s Overall Dimension:
