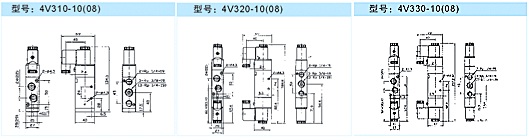

Quick Connecting Tube Fitting & Accessories     F.R.L.Equipment     3/2 Way Solenoid Valve / Air     5/2 & 5/3 Way Solenoid Valve     5/2 & 5/3 Way Air Control Valve     Manifold     Solenoid Coil     Coil Socket     2/2 Way Solenoid Valve     Cylinder   4V3 Series 5/2 & 5/3 WAY SOLENOID VALVE    SIGN Specification for Type 4V 3 10 08 AC110V ┯ │ ┯ │ ┯ │ ┯ │ ┯ │ Specification code 4V:5/2 & 5/3 WAY SOLENOID VALVE 3:300 series Coil and position: 10:single head double position 20:double head double position 30C:double head three position close type 30E:double head three position released type 30P:double head three position pressure type Adapter diameter: 08:1/4" 10:3/8" Standard voltage: DC12V DC24V AC24V 50/60Hz AC110 50/60Hz AC220 50/60Hz AC380 50/60Hz Specification Item 4V310 -08 4V320 -08 4V330C -08 4V330E -08 4V330P -08 4V310 -10 4V320 -10 4V330C -10 4V330C -10 4V330P -10 Medium Air( diameter 40mm filter net) Action mean Inside guide style Position five port two position three port five position five port two position three port five position Effective section area 25mm2(CV=1.4) 18mm2(CV=1.0) 30mm2(CV=1.68) 18mm2(CV=1.00) Adapter diameter Inlet=outlet=release=1/8" Inlet=outlet=3/8" release=1/4" Lubrication no needed Pressure applied 1.5-9.0kgf/cm2 Max. pressure withstand 13.5kgf/cm2 Temp 5~60℃ Voltage range ±10% Power consumption AC:4.0VA DC:3.0W Isolation property F Degree of protection IP65(DIN4005) Wiring mean Terminal Max. operation frequency 5times per second Overall Dimension:
