EH series coil
SOLENOID VALVE
Specification for Type
EH
600
10
R
AC220V
┯
│
┯
│
┯
│
┯
│
┯
│
Series code
Specification code:
600:600 Coil
601:601 Coil
602:602 Coil
Coil bore diameter:
9:9mm
10:10mm
Attach code:
R: 169C Temperature fuse
standard voltages:
DC12V
DC24V
AC24V 50/60Hz
AC110 50/60Hz
AC220 50/60Hz
Specification
Model
EH600-9
EH600-10
EH601-9
EH601-10
EH602-9
Power
consumption
DC Type 3W
AC Type 4VA
DC Type 6.5W
AC Type 7.0VA
DC Type 3W
AC Type 4VA
DC Type 6.5W
AC Type 7.0VA
DC Type 3W
AC Type 4VA
Duty cycle
100%ED
Operating
voltages
24.110.220V.50/60Hz±10%
12.24.48VDC±10%
Withstand
voltage
JB/T 6378-92
3000V
JB/T 6378-92
Ambient temp. range
-30?~70℃
Degree of protection
DIN40050,IP65(IEC144)
With Connector
Coil insulation
ClassF
Potting material
热固性(A)或热塑性(B)
热固性
热塑性
Electrical connection
AMP Connector or DIN436508 Connector
Size

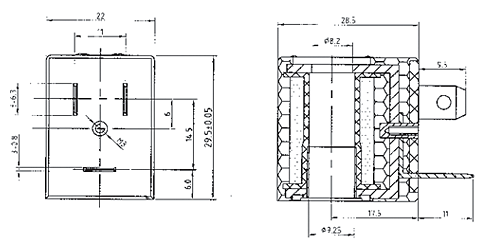

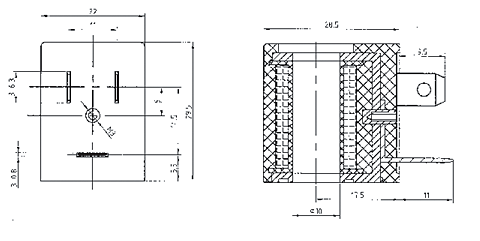

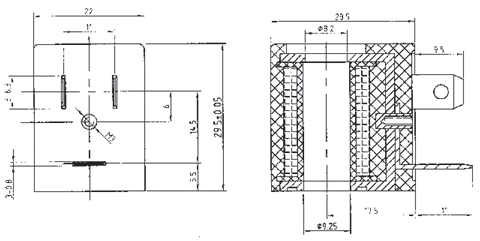

EH 600-9
EH601-9
EH600-10
EH601-10
EH602-9
EX series coil
product code system
EX
AC220
┯
│
┯
│
eries code :
01:on light
02:with light
voltage:
DC12V
DC24V
AC24V 50/60Hz
AC110 50/60Hz
AC220 50/60Hz
Characteristics:
used for 2v series 2/2 WAY SOLENOID VALVE,
Electrical connection: DIN443650 standard Connector
Ambient temperature range: -20~+55℃
Degree of protection: class f

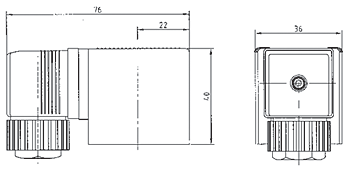

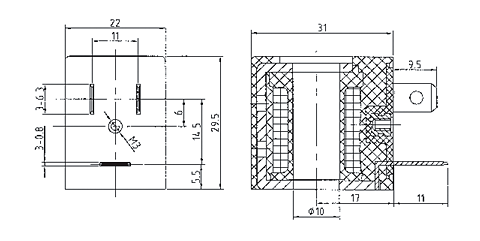

EX overall dimension
