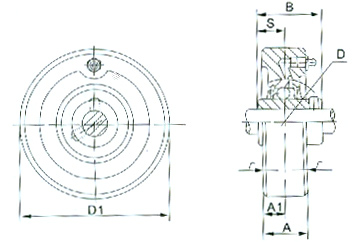

UCC200(Y90500)型带环形座顶丝外球面球轴承 |
|
说明：轴承座外径为圆筒状，经磨加工与轴的同轴度较好、整体可作一套轴承处理，同时轴向可自由移动，多用在伸缩性较大的自由侧。
|
带座轴承代号 |
外形尺寸
Shape Dimension(mm) |
带座
轴承
重量
(kg) |
配用轴承代号 |
配用轴座承代号 |
|
新代号
New type
No. |
旧代号
Pro
type No. |
D |
B |
S |
D1 |
A20 |
A1 |
|
新代号
New
type No. |
旧代号
Pro
type No. |
新代号
New
type No. |
旧代号
Pro
type No. |
|
UCC203 |
Y90503 |
40 |
27.4 |
11.5 |
67 |
20 |
10 |
1.1 |
0.4 |
UC203 |
90503 |
UC203 |
Y503 |
|
UCC201 |
Y90501Y |
47 |
31.0 |
12.7 |
72 |
20 |
10 |
1.1 |
0.6 |
UC201 |
90501Y |
UC204 |
Y504 |
|
UCC202 |
Y90502Y |
47 |
31.0 |
12.7 |
72 |
20 |
10 |
1.1 |
0.6 |
UC202 |
90502Y |
UC204 |
Y504 |
|
UCC203 |
Y90503Y |
47 |
31.0 |
12.7 |
72 |
20 |
10 |
1.1 |
0.5 |
UC203 |
90503Y |
UC204 |
Y504 |
|
UCC204 |
Y90504 |
47 |
31.0 |
12.7 |
72 |
20 |
10 |
1.1 |
0.5 |
UC204 |
90504 |
UC204 |
Y504 |
|
UCC205 |
Y90505 |
52 |
34.1 |
14.3 |
80 |
22 |
11 |
1.1 |
0.7 |
UC205 |
90505 |
UC205 |
Y505 |
|
UCC206 |
Y90506 |
62 |
38.1 |
15.9 |
85 |
27 |
13.5 |
1.1 |
0.9 |
UC206 |
90506 |
UC206 |
Y506 |
|
UCC207 |
Y90507 |
72 |
42.9 |
17.5 |
90 |
28 |
14 |
1.1 |
1.0 |
UC207 |
90507 |
UC207 |
Y507 |
| UCC208 |
Y90508 |
80 |
49.2 |
19.0 |
100 |
30 |
15 |
1.5 |
1.3 |
UC208 |
90508 |
UC208 |
Y508 |
| UCC209 |
Y90509 |
85 |
49.2 |
19.0 |
110 |
31 |
15.5 |
1.5 |
1.6 |
UC209 |
90509 |
UC209 |
Y509 |
| UCC210 |
Y90510 |
90 |
51.6 |
19.0 |
120 |
33 |
16.5 |
1.5 |
2.0 |
UC210 |
90510 |
UC210 |
Y510 | |
|
注：根据国标《GB/T7810》，该型座配以UEL200型轴承或UK200+H2300型轴承，可装配成为带环形座偏心套外球面球轴承或带环形座紧定套外球面轴承，本厂均生产供货。
| |
|
